Leitz VIIIs

1937-1951

next model:
Leitz Parvo
click...

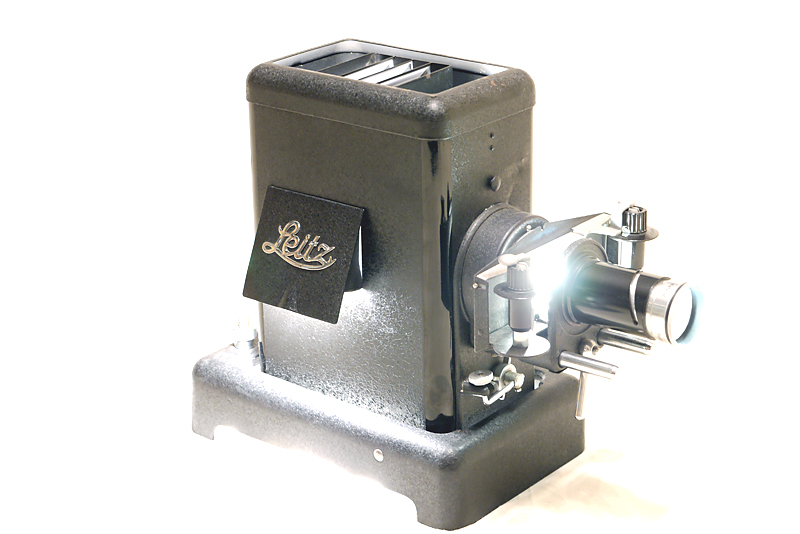

Leitz-Projektor VIIIs

This projector included a new condenser system, Lamp: 250W for cine fitting, removable lamp housing, efficient heat filter, optional: electric cooling with external cooler, you could choose between 250W, 350W, 375W and 750W lamps, Lenses: Hektor f/2.5 85mm or Hektor f/2.5 100mm, other lenses from 80 up to 300 mm, built between 1937 and 1951,
Dimensions incl. 100mm-lens: LxWxH: 370mm x 160mm x 275mm;

download the brochure from 1939 as pdf:
[VIIIs-Prospekt]

please, click on the first picture...
